Applications

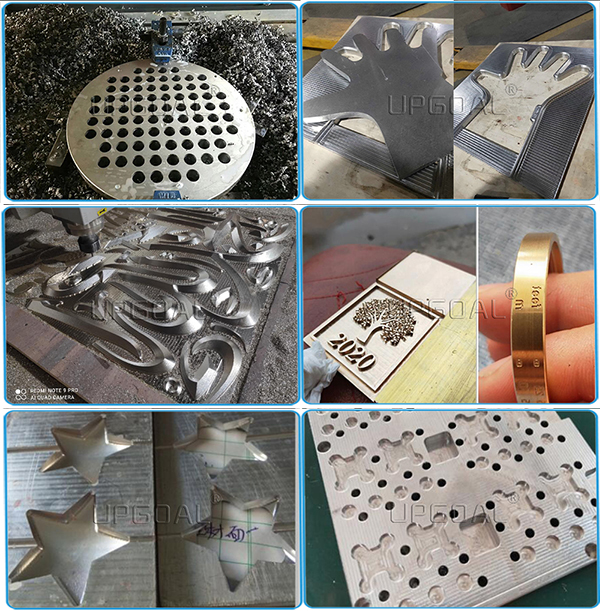

Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.

Features

1. Super heavy duty cast iron structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

2. Thickness cast iron T slot Working table,  with platform moving type, durable without deformation, enable positioning more preciously.

3.Equipped with  Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.

4.Three axis with precision grinding TBI lead ball screw transmission ensure the engraving speed and accuracy.

5.High variable speed China HQD 5.5KW water cooling ATC spindle with BT30 tapered bore, big torque, longer life, strong cutting  ability and continuous work for long time.

6. Yaskawa Japan 750W servo motor driver for XYZ-axis, Z-axis with braking system, ensuring high speed and precision working

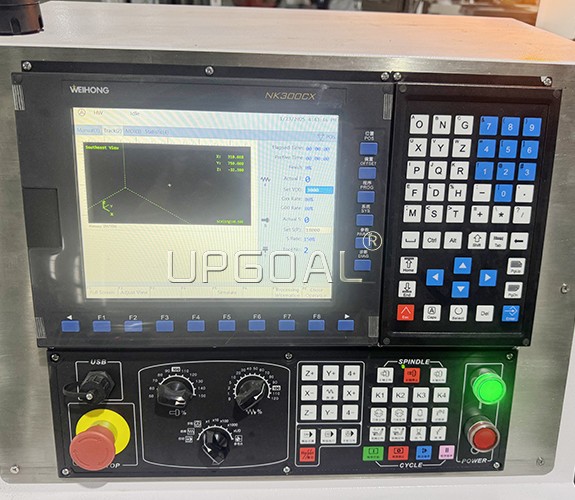

7.Weihong NK300control system, supports auto toosl changing, its high real-time embedded system, strong and more stable performance, its S control algorithm, ensure the uniform force of the machine bed and prevent effective jitter.

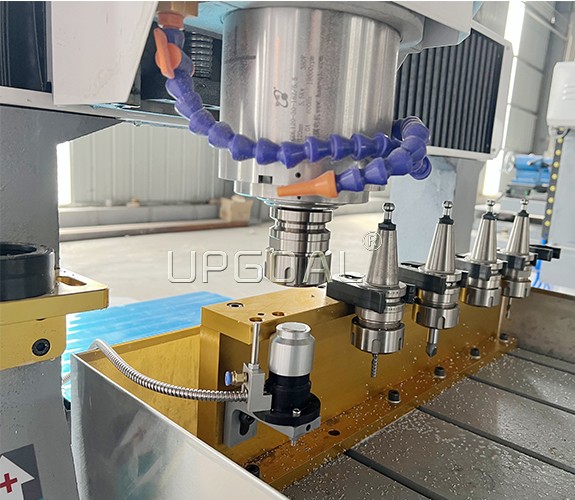

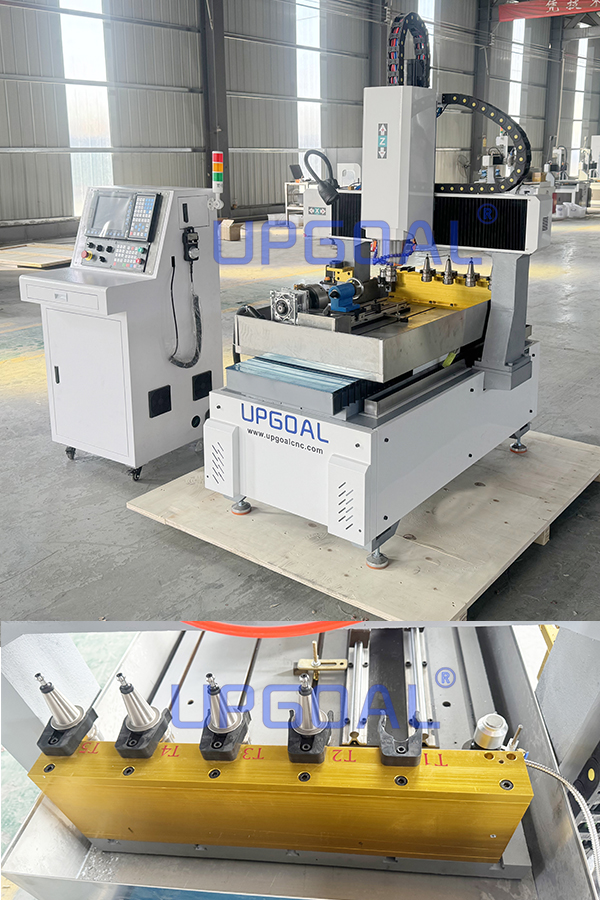

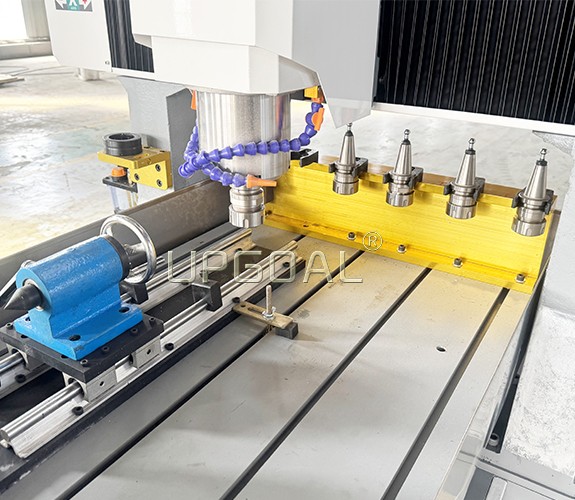

8. With linear type auto tool changer system, total 5 pcs(or more) bits in the tool magazine, only 8 seconds to change bits, can change the needed bits intelligently, saving bits changing time, improving efficiency.

9. Stainless steel water slot cooling system with CW-5000 industrial chiller, ensure long time metal matrials processing.

10. High precision RBK intergrated motor base and diaphragm coupling, esnuring the machine precision.

11. Folding stainless steel dust proof for Y-axis , and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.

12.Auto lubrication system, more  convenient for machine lubricating.

13. Auto tools calibration, conveineint for working.

14. With 4th axis rotary axis, diameter 200mm, length 6000mm for cylinder processing.

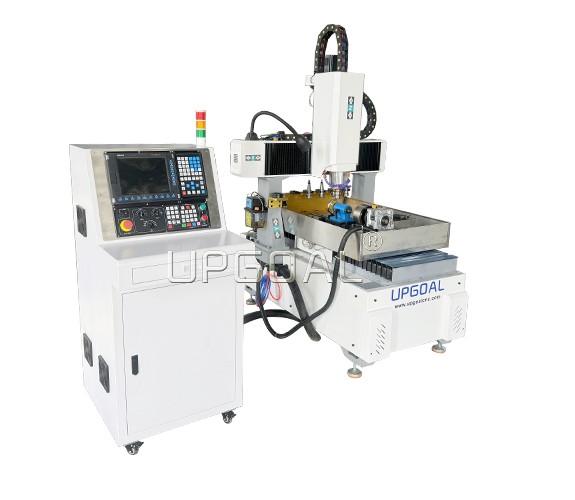

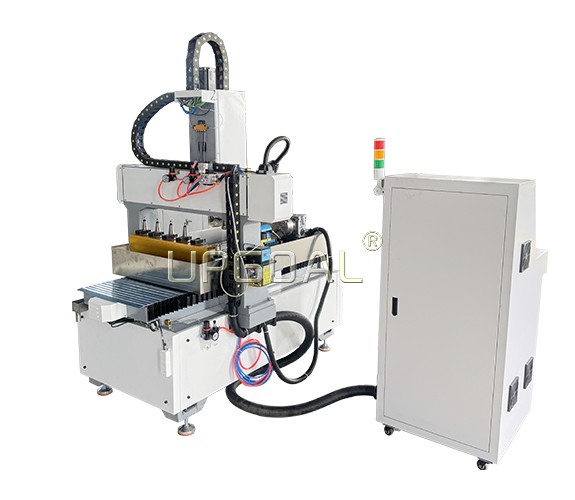

15. Independent computer cabient , rationalized placement of the electronic parts. optimized heat dissipation effect. Adpot high quality electornic parts, minimizig fault rate.

16.With the function of break-point memory, power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.

17.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

18.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design
